Medicines guaranteed safe and energy-efficient steam
The steam system of this pharmaceutical company has been conforming to a long list of requirements since forever and a day. Determined to keep it like that, Janssen Pharmaceutica called on Callens to partially renovate its system.

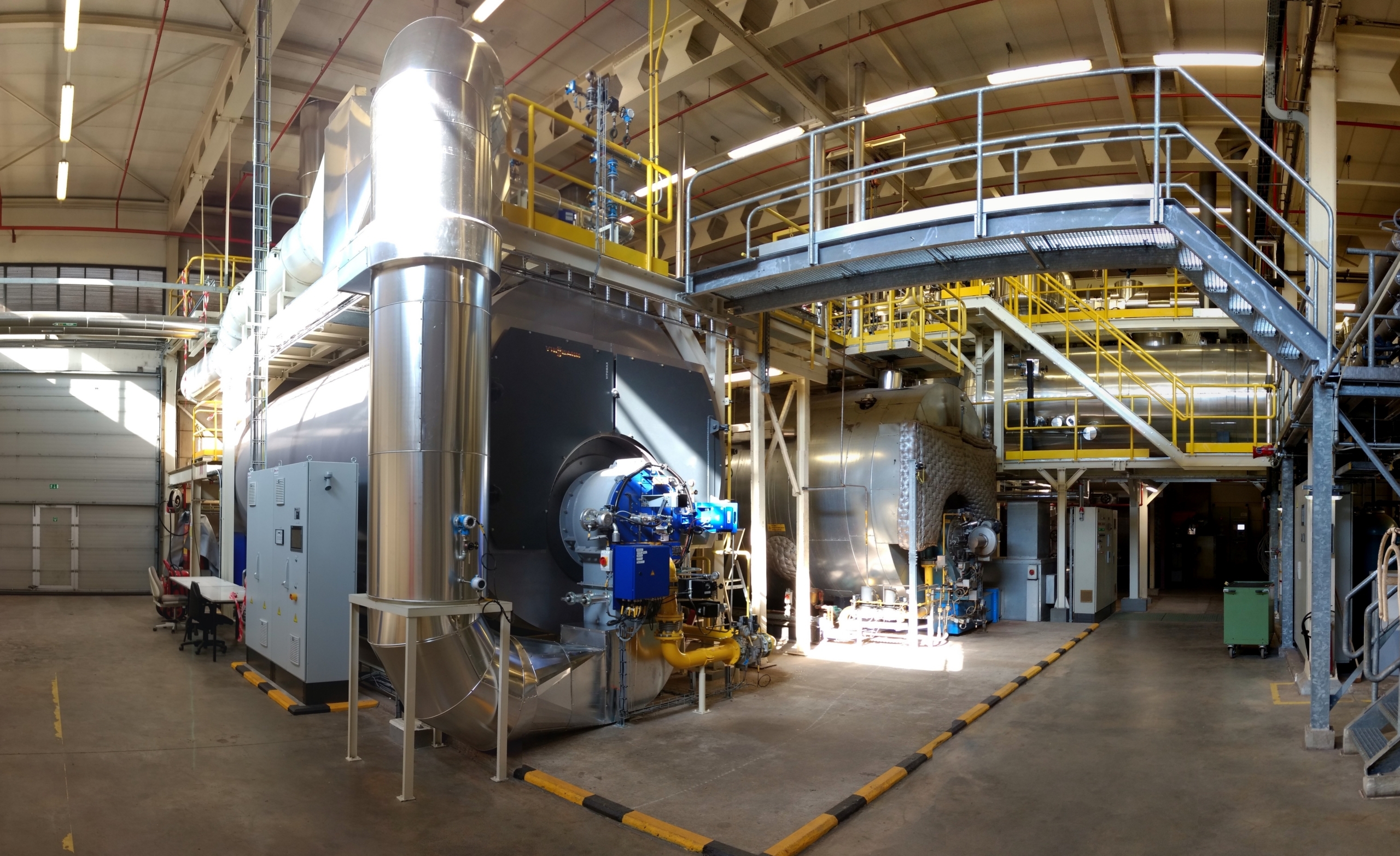

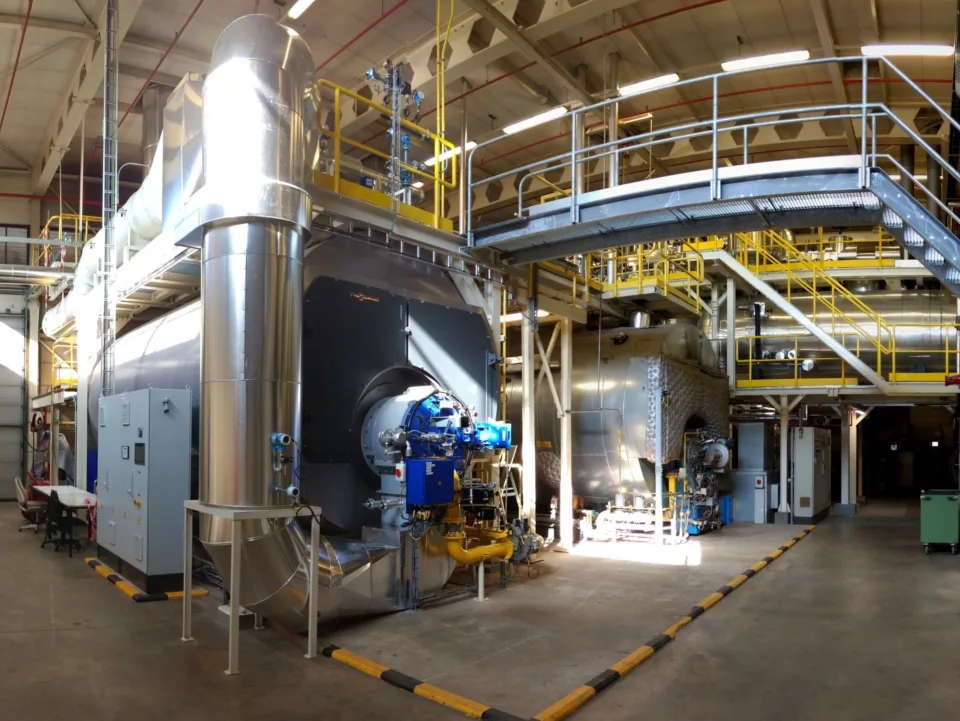

We replaced one of the three steam boilers with a brand-new Viessmann boiler that supplies 16 tons of steam per hour. Also the water supply train, complete with degassing unit, condensate tank, pumps, valves and pipes, were exchanged for the best, latest models.
Output
16 tons of steam/h
Operating pressure
10 barg
Working pressure
8 barg
Fuel
natural oil / fuel oil (backup)
Combustion efficiency
98.6 %
To allow us to tick off the ‘optimised efficiency’ box, we fitted the new main steam boiler with an economiser, oxygen regulator and air preheater (APH).
At that, we built in an extra option that enhances reliability even further: the entire system derives its energy from natural gas but can also run on fuel oil so that it can continue to generate steam in the event of a scheduled or unscheduled disruption in the natural gas supply.
