Electric thermal oil boiler

An electric thermal oil boiler directly converts electricity into process heat, without the need to burn fossil fuels and, hence, without direct emissions on site. It is a reliable and energy-efficient alternative to conventional gas-fired installations.

The Callens Group helps you with the technical and economic assessment and develops a solution tailored to your heat demand, energy infrastructure and sustainability targets.

Discuss the options

When is an electric thermal oil boiler attractive?

An electric thermal oil boiler is especially attractive if you want to make your process heat more sustainable and reduce your dependence on fossil fuels.

Its feasibility will, among other things, depend on available electrical capacity, energy prices, the required thermal output and the number of operating hours. Availability of your own renewable energy supply or electricity surpluses also plays an important role in the business case.

Because there is no combustion, there are no flue gases, chimneys or direct CO2 and NOx emissions on site.

Reasons to consider an electric thermal oil boiler:

  • You want to phase out the use of fossil fuels.
  • You want to reduce the CO2 emissions of your heat production on site.
  • You have sufficient electrical capacity or are exploring a grid upgrade.
  • You want to convert electricity surpluses or green power into usable process heat.
  • You want to deploy this boiler whenever electricity is most attractive.

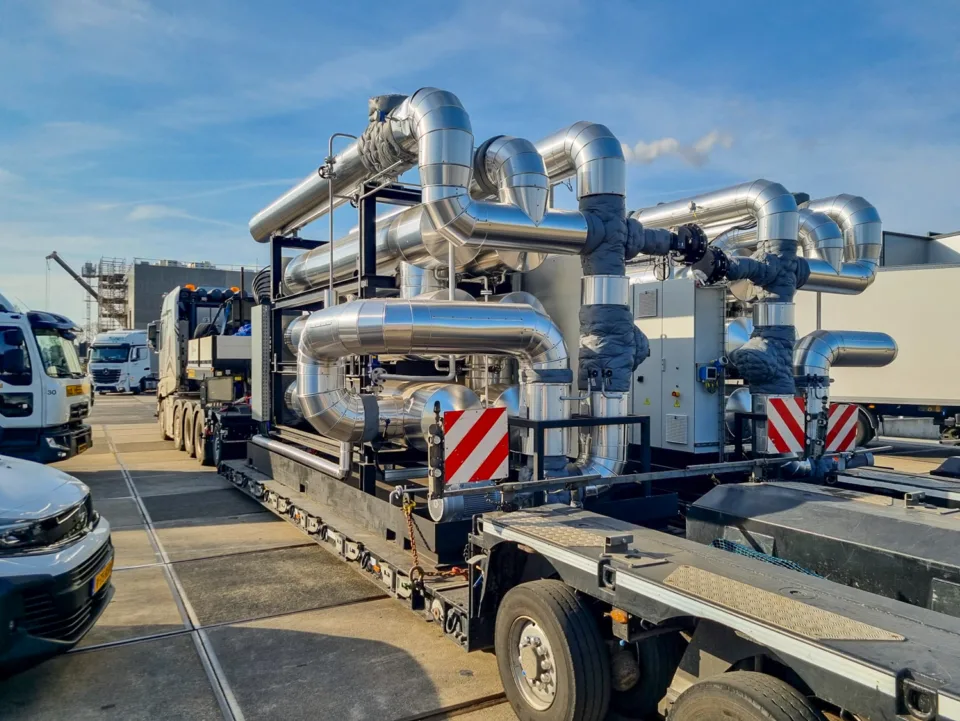

Eneco Pepsico Broek Op Langendijk NL HT Temp Opslag Elektr TO 2x3 MW PRJ220293 1
Power100 kW to 30 MW
Capacity100,000 kcal/h to 12,500,000 kcal/h
Process temperatureup to 350 °C
Operating pressure0.5 to 30 barg
Efficiency95 %

Technical specifications of electric thermal oil boilers

Whether an electric thermal oil boiler is an option will depend on:

  • power
  • process temperature
  • connection voltage
  • available grid capacity
  • efficiency

Our specialists guide you through every consideration and will inter alia analyze your heat consumption, energy infrastructure and operating hours. That way you can rest assured that  your electric thermal oil boiler is perfectly matched to your process, available energy supply and future growth plans.

BENEFITS

Advantages of an electric thermal oil boiler

More and more companies are exploring how to electrify their process heat. Electric thermal oil boilers can be an important building block within that energy transition, since they produce heat without local combustion.

Lower emissions

No combustion in the boiler and, hence, no direct flue gas emissions.

Fast controllability

The power can be precisely matched to the process’s current heat demand.

High efficiency

Electricity is converted into heat very efficiently.

Fewer fossil fuels

Heat production becomes less dependent on natural gas or other fuels.

Putting surplus electricity to good use

Excess or cheaper electricity can be converted into process heat.

Less peripheral equipment

No need for a burner or flue gas system, which simplifies the installation.

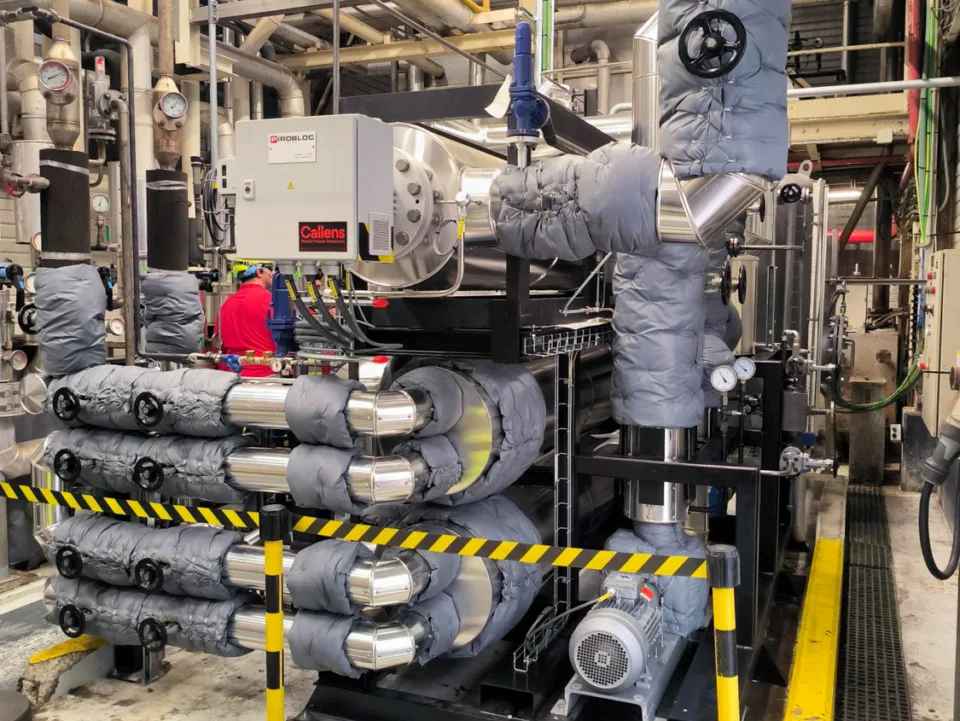

How do you integrate an electric thermal oil boiler into your existing infrastructure?

Depending on the available space and the configuration of your installation, the boiler can be set up either horizontally or vertically. This makes it relatively easy to integrate it into existing technical rooms or new energy plants.

In addition, an electric thermal oil boiler is often combined with the existing heat sources of a thermal oil circuit, allowing you to make optimal use of the available energy while safeguarding operational reliability.

The most suitable configuration will depend on available grid capacity, heat consumption and the existing energy infrastructure. The Callens Group’s specialists map out these parameters and advise you on the technically and economically most attractive solution.

Callens Elektrische TO
Callens Elektrische TO Onderhoud

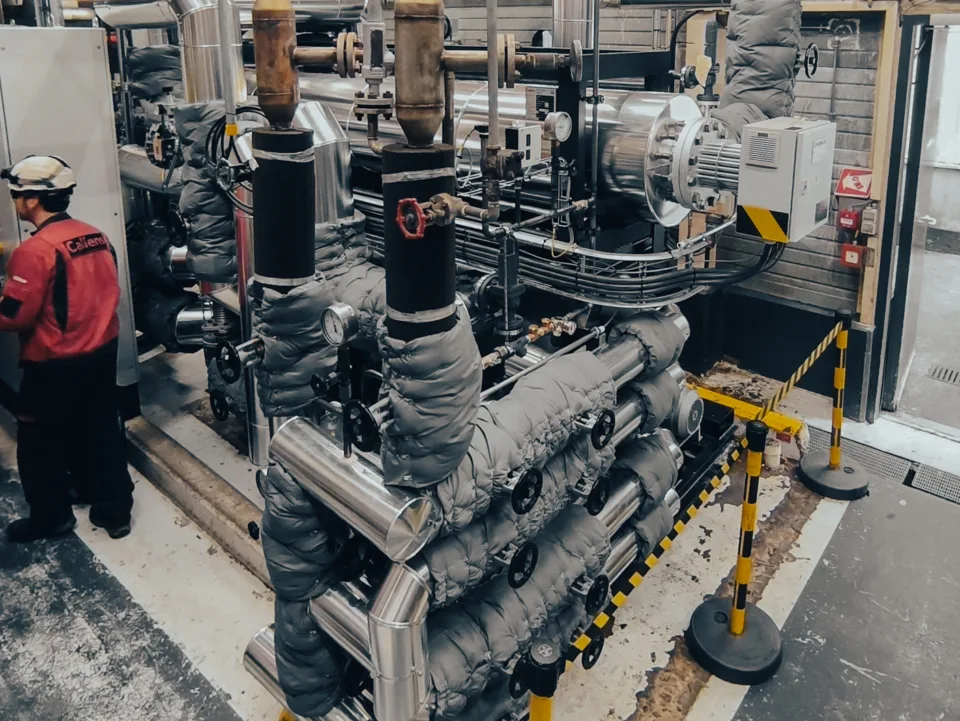

Maintenance of your thermal oil boiler and 24/7 service

The Callens Group’s maintenance and service team ensures that your installation continues to perform optimally, long after commissioning. With an in-house team of more than 120 service and maintenance technicians, we schedule preventive maintenance in line with the legal and technical requirements of your installation.

On top of that, you can count on fast support whenever an unexpected breakdown occurs. Thanks to our 24/7 standby service, an extensive range of spare parts and the expertise of our service technicians, we carry out interventions quickly and efficiently.

Even the best maintained installation can malfunction or shut down unexpectedly. That is why the Callens Group offers various service packages, tailored to the desired response time and level of support. So even in unforeseen situations, you’re assured of our expertise.

More information about our service packages

“Maximizing energy efficiency doesn’t start with choosing a technology, but with mapping out your environment and goals.”

Projects with electric thermal oil boilers

Callens thermische boiler klant 1
Thermal technology Electrification Electric thermal oil boiler +2

Thermal craftmanship across national borders

Capacity18 kW
Flow rate12 m³/h
FAQ

Questions? We have the answers.

That is possible, but it will depend on factors such as the required power, available grid capacity and your consumption profile. In some cases, a fully electric solution will be preferable, in others, a hybrid configuration. Not sure whether full or partial electrification is the way to go? Our specialists are happy to carry out an initial technical analysis of your installation. By all means make an appointment.

An electric thermal oil boiler produces no direct CO2 emissions on site because no combustion takes place. If your installation is powered by 100 % green electricity, the CO2 emissions of your heat production can even be reduced to zero. Your actual CO2 reduction will depend on the type of installation you are contemplating replacing, your consumption and the source of the electricity you are using. Curious how much CO₂ your company could save? Our engineers will be happy to make an estimate based on your current heat production.

Yes. Electric thermal oil boilers are particularly well suited to converting self-generated solar or wind energy, or cheap electricity during certain market periods, into usable process heat.

As an EPCS integrator, the Callens Group takes charge of the entire process: from on-site analysis and engineering to installation and service. This gives you a single point of contact throughout the entire service life of your electric thermal oil boiler. You’ll find more information about the various steps in our workflow here.

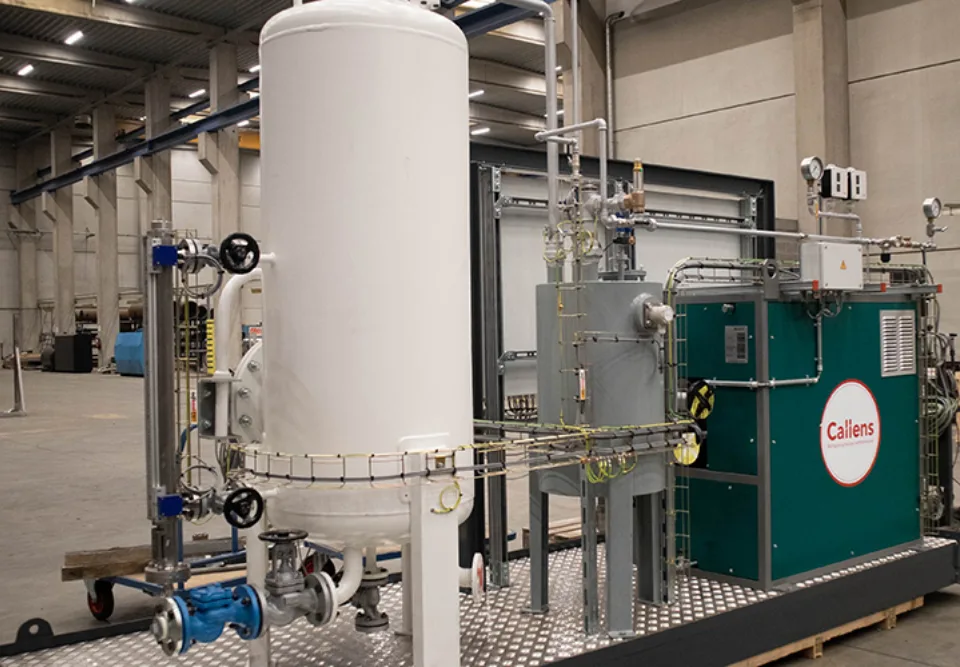

For a manufacturer of sealants for the construction sector, the Callens Group realized an installation to keep a 60 m³ chemical storage tank and the associated filling and circulation lines at a constant temperature of 45 °C. To do so, we opted for an 18-kW electric thermal oil boiler with a flow rate of 12 m³ per hour, coupled to a 100-liter buffer tank and various pump combinations that circulate the thermal oil through the tank coil and double-walled piping.

More info: https://www.callens.eu/en/heat-technology/thermal-oil-boilers/thermal-craftsmanship-across-borders
