Hybrid hot water or industrial central heating system

At certain times, electricity may be advantageous or locally available, while, at other times, gas offers more certainty. Energy recovery or other alternative energy sources can also play a role within your heat supply.

With a hybrid hot water or industrial central heating system, you combine different heat sources within a single integrated system. That allows you to flexibly respond to energy prices, energy availability and sustainability goals without compromising on operational reliability.

The Callens Group designs, builds and integrates hybrid heat installations that are perfectly tailored to your heat demand, existing infrastructure and long-term strategy.

Discuss the possibilities

When is a hybrid hot water or industrial central heating system worthwhile?

A hybrid system smartly combines different energy sources. That makes this thermal technology worthwhile for companies that have access to several energy sources and want to optimally respond to energy prices, fuel availability, available grid capacity, and so on.

Moreover, a hybrid installation makes it possible to add new technologies step by step. For example, an existing gas-fired installation can work together with an electric boiler, heat pump or energy recovery system. Heat is always produced by the energy source that is most attractive at that moment.

Reasons to consider a hybrid hot water or industrial central heating system:

You want to flexibly respond to fluctuating energy prices.
You have access to several energy sources on site.
You want to gradually reduce the use of fossil fuels.
You want to put electricity surpluses to good use for heat production.
You are looking for maximum operational reliability for your heat supply.

Output	up to 20 MW
Connection voltage	Various options available
Operating pressure	0.5 to 30 barg
Efficiency	95%

Technical specifications of hybrid hot water or industrial central heating systems

Every hybrid installation is fully designed to measure. The required output, the desired temperature, heat consumption and the available energy sources all help determine which configuration is most suitable.

In addition, our engineers look at the existing infrastructure, the control strategy, future expansion possibilities and the economic feasibility of the various technologies.

BENEFITS

Advantages of a hybrid hot water or industrial central heating system

A hybrid heat supply combines the best of several technologies. This creates a flexible system that can adapt to changing conditions. The benefits are not to be sneered at.

Fewer fossil fuels

Sustainable energy sources can gradually take over a larger share of your heat production.

Maximum flexibility

Different heat sources can work together within a single installation.

More control over energy costs

The installation can respond to fluctuating energy prices and availability.

High operational reliability

When one heat source is temporarily unavailable, other energy sources can take over your heat production.

Better grid balancing

Electric heat production can be deployed at times when electricity is abundantly available or economically attractive.

Useful use of energy surpluses

A functional and low-maintenance way to make use of energy surpluses.

What is the difference between a combined set-up, a dual-fuel boiler and a hybrid hot water or industrial central heating system?

These terms are often used interchangeably, but they refer to three different concepts.

A hybrid hot water or industrial central heating system:

A hybrid hot water or industrial central heating system combines different technologies within a single integrated energy system, for example a gas-fired boiler with an electric hot water or industrial central heating system. An intelligent control system automatically determines which technology is used at any given moment.

A hot water or industrial central heating system in a combined set-up:

A combined set-up consists of two or more separate hot water or industrial central heating boilers that each use their own energy source and together meet the total heat demand. For example, a gas-fired boiler can be combined with a biogas boiler, a hydrogen boiler or a boiler that runs on liquid residual streams. Each installation retains its own function and characteristics.

A dual-fuel hot water or industrial central heating boiler:

With a dual-fuel boiler, there is one boiler with one burner that can switch automatically between two fuels, for example natural gas and biogas or natural gas and hydrogen.

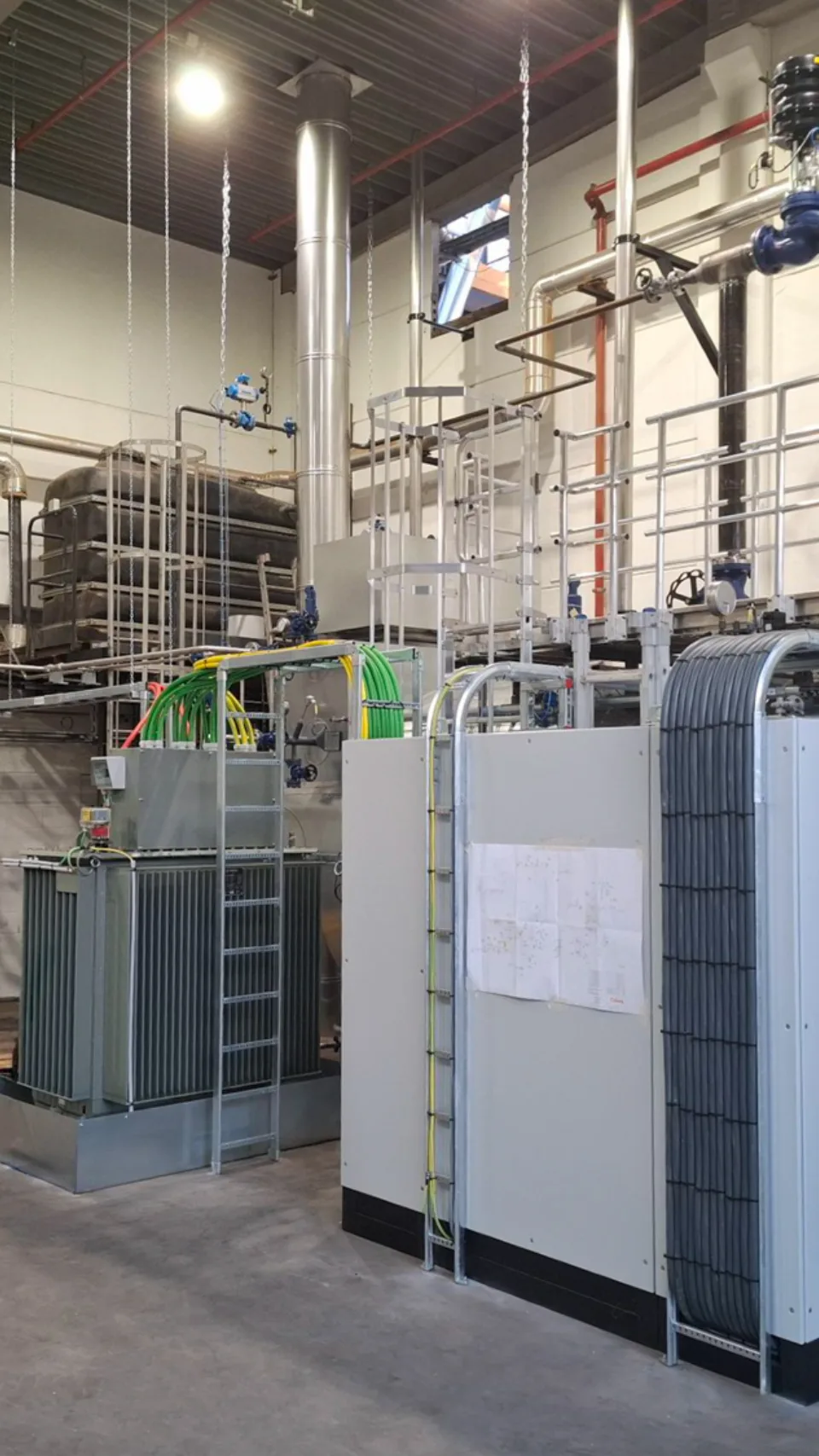

Terumo Leuven hoogrendements cvketel 2x1280k W PRJ240037 1

Maintenance of your hybrid hot water or industrial central heating system and 24/7 service

The Callens Group maintenance and service team makes sure your installation keeps performing at its best, even after commissioning. With an in-house team of more than 120 service and maintenance technicians, we schedule preventive maintenance in line with the legal and technical requirements of your installation.

On top of that, you can count on fast support whenever an unexpected breakdown occurs. Thanks to our 24/7 standby service, an extensive range of spare parts and the expertise of our service technicians, interventions can be carried out quickly and effectively.

After all, even the best maintained installation can malfunction or stop working unexpectedly. That is why the Callens Group offers a range of service packages, tailored to your preferred response time and level of support. So even in unforeseen situations, you are assured of the right support and maximum operational reliability.

More information about our service packages

PARTNERSHIP

Why partner with the Callens Group?

60 years of experience in EPCS projects

Independent integrator focused on customer needs

Flexible customer and project approach

Short decision-making lines and a personal approach

Unique service and maintenance support

Always close to customers with 13 locations

“Maximizing energy efficiency doesn’t start with choosing a technology, but with mapping out your specific situation.”

FAQ

Questions? We have the answers.

A hybrid system can combine different technologies within a single central heat supply. Common configurations are:

• gas-fired and electric hot water boilers;

• hot water boilers combined with heat pumps;

• gas-fired installations combined with energy recovery;

• biogas or hydrogen applications alongside existing installations;

• combinations of several heat sources within a single central heat network.

The Callens Group specialists analyze your situation and advise you on the combination that is most attractive, technically and economically. Contact us.

The switch happens fully automatically via an intelligent control system. It takes into account parameters such as energy prices, heat demand, available output, grid capacity and any sustainability goals. This way, the installation produces heat at any given moment via the energy source that is most attractive technically and economically.

Yes. By flexibly switching between different energy sources, the installation can respond to fluctuating energy prices. When electricity is cheap, more can be produced electrically. When another heat source is more economically attractive, that takes over. This can significantly optimize the total energy cost of your heat production. Curious how much a hybrid hot water or industrial central heating system could save on your site? Our engineers are happy to look into it with you.

Do you have a project inquiry?

Tell us about your challenges. We turn them into
practical advice.
